Since mounting structures affect the overall generation, efficiency, and durability of the system, it is crucial to select the right one for your needs. It is also vital to ensure that the structure is stable and can withstand wind, hail, rain, snow, and even moderate earthquakes.
There are seven primary types of solar mounting structures.
-Ground Mounting System
-Floating Mounting System
-Carport Solar Mounting System
-Flexible Mounting System
-Roof Mounting System
-BIPV
-Tracking SystemGround Mounting System

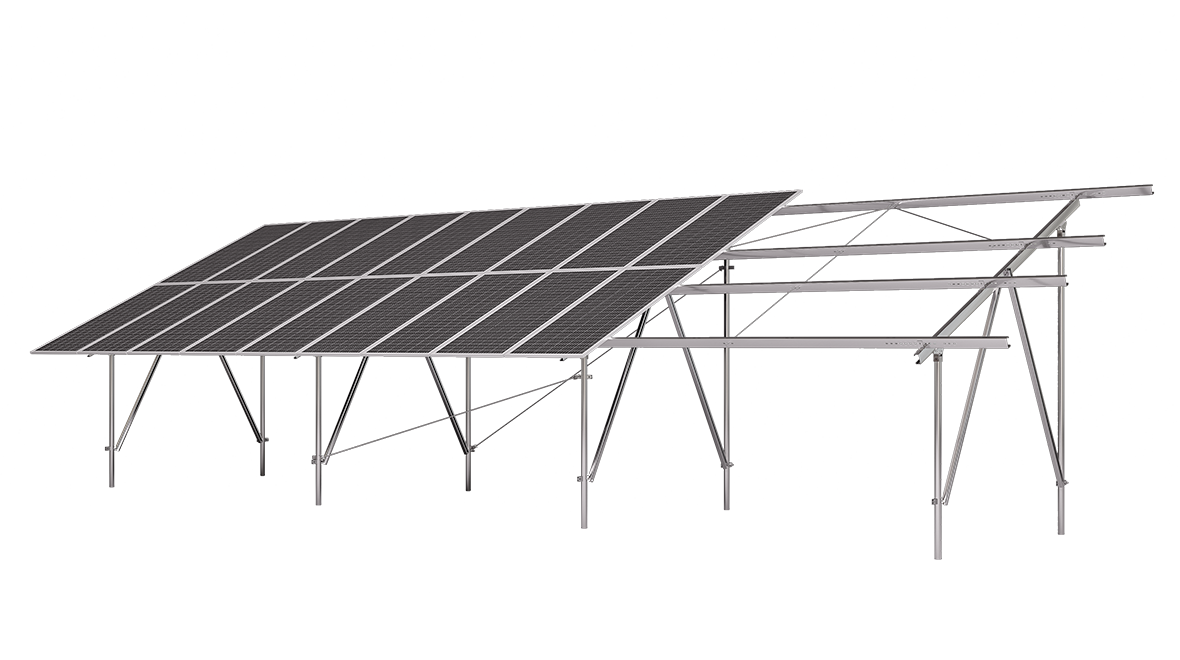

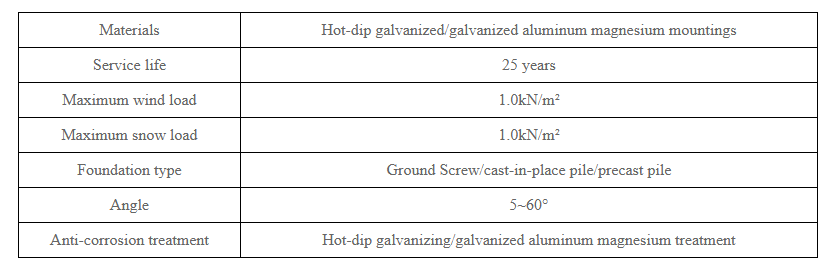

The double-pole solar mounting system is a common solar photovoltaic mounting structure, which is supported by two independent poles.Based on the sunlight conditions in different regions, the solar panel is fixed at an appropriate angle, which is a cost-effective mounting solution.

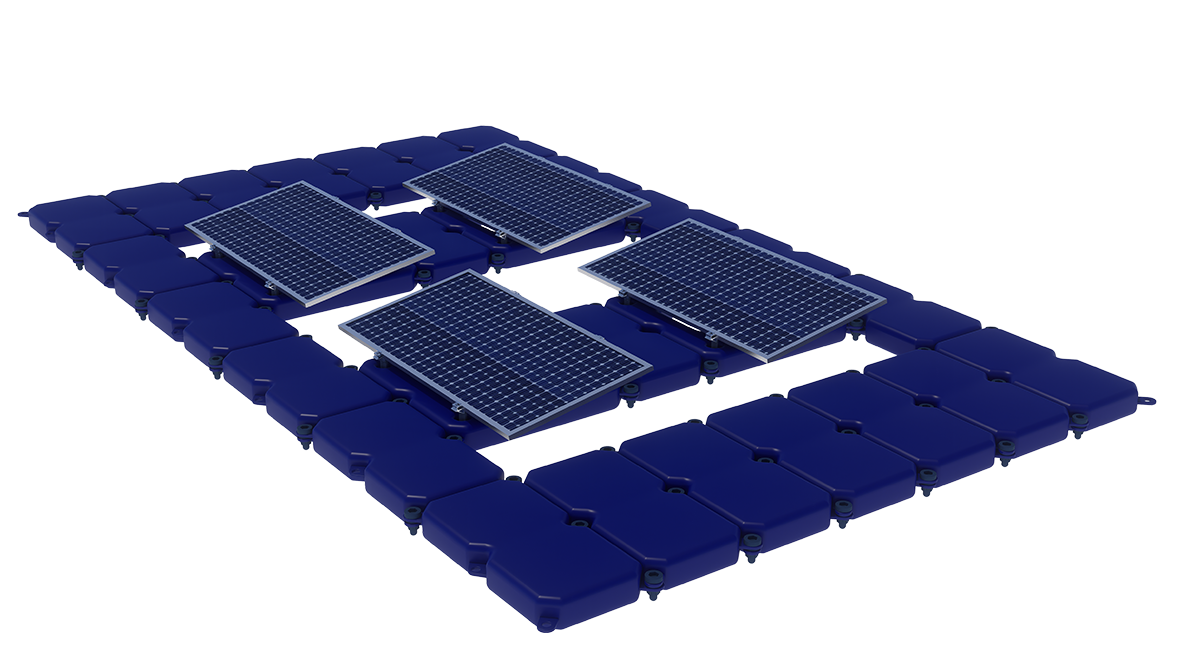

Floating Mounting System is a form of racking in which PV modules are mounted on the water surface, which can be applied in many fields such as marine engineering, fishery, agriculture, tourism and so on.

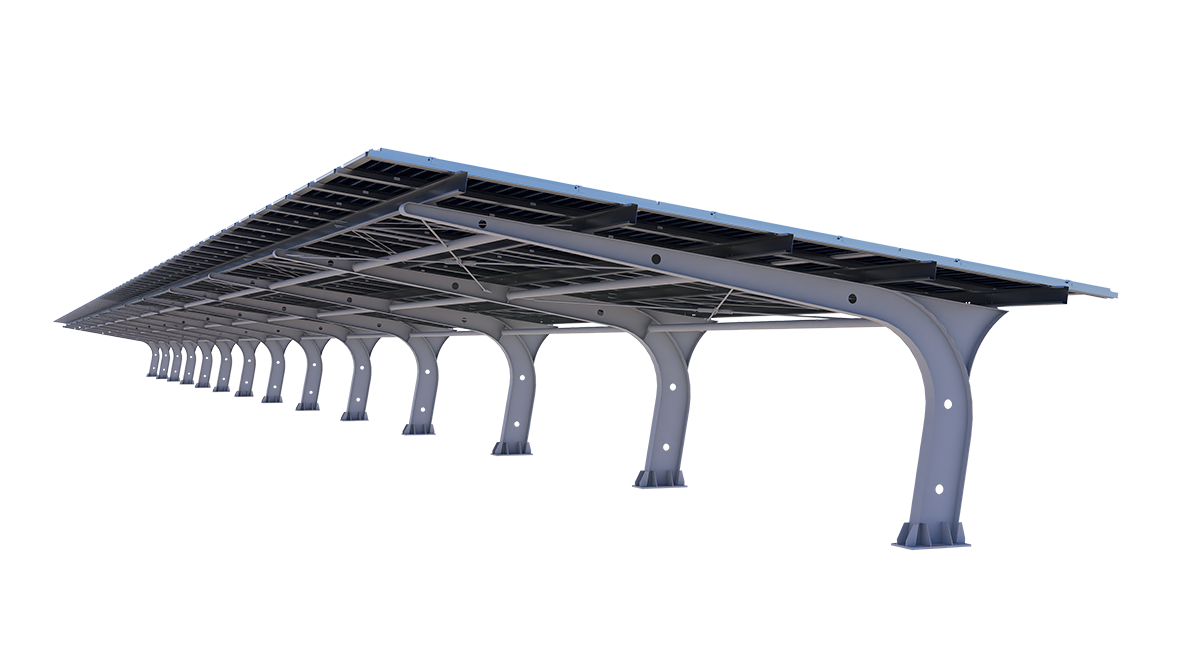

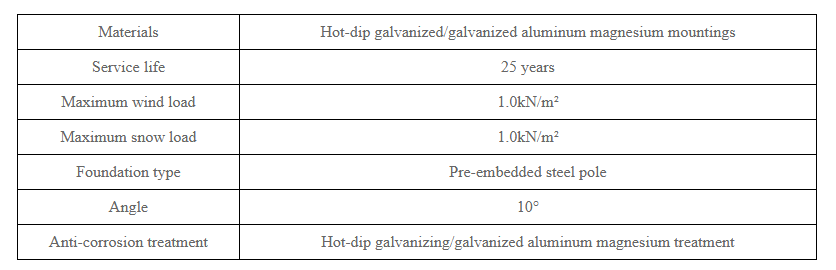

Steel Carport Solar Mounting System will be ordinary carport and photovoltaic power generation into one, not only for the vehicle wind and rain and can use solar power for electric vehicle charging, general lighting and grid connection, improve the aesthetics and functionality of the carport.

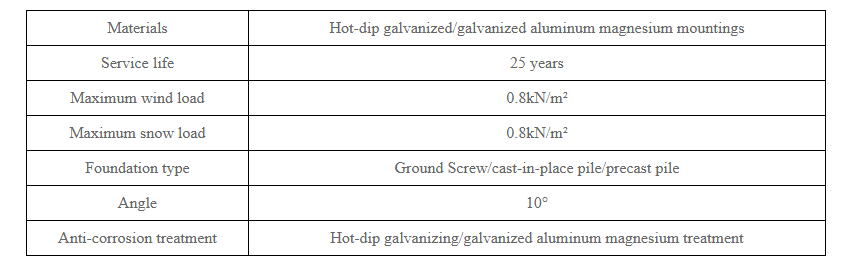

The Mountain Flexible Mounting System is a flexible load-bearing structure composed of pre-stressed cables and their edge components, which uses fewer support points, saves land occupation area and one unit of steel consumption. It has good wind resistance, large span, and high headroom, and can adapt to various complex mountain terrains.

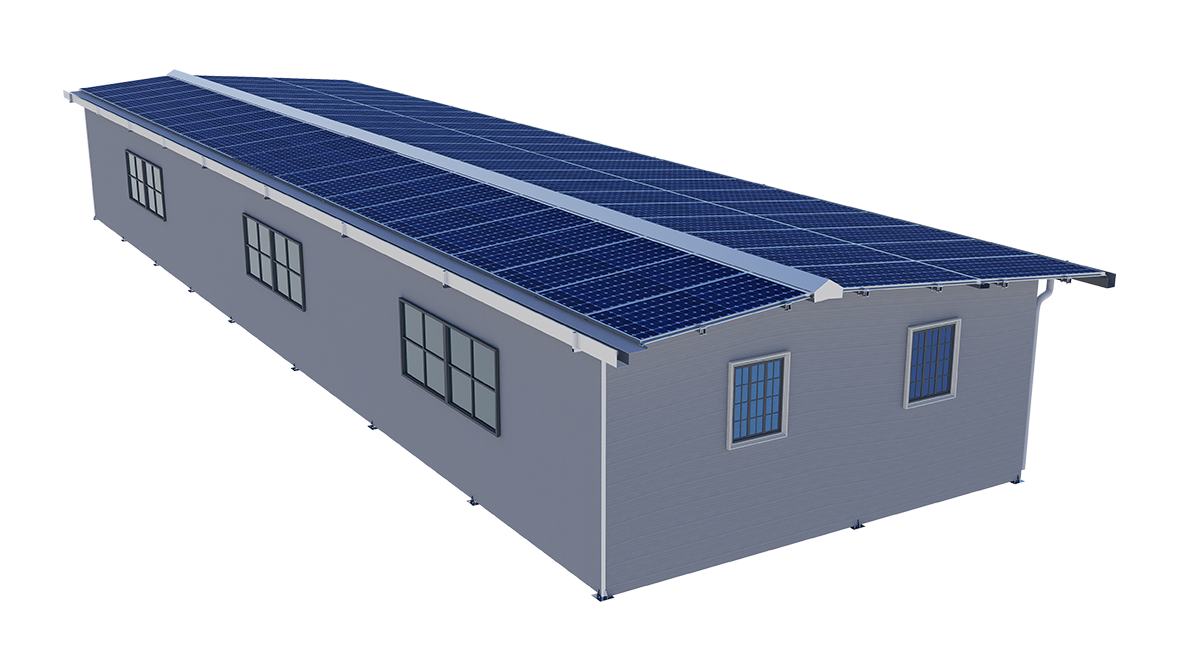

Compared with the traditional way of laying photovoltaic panels on metal roof, the BIPV mounting system attaches the mounting directly to the surface of the building without the need of metal roof laying, and forms an overall waterproofing and lighting system.

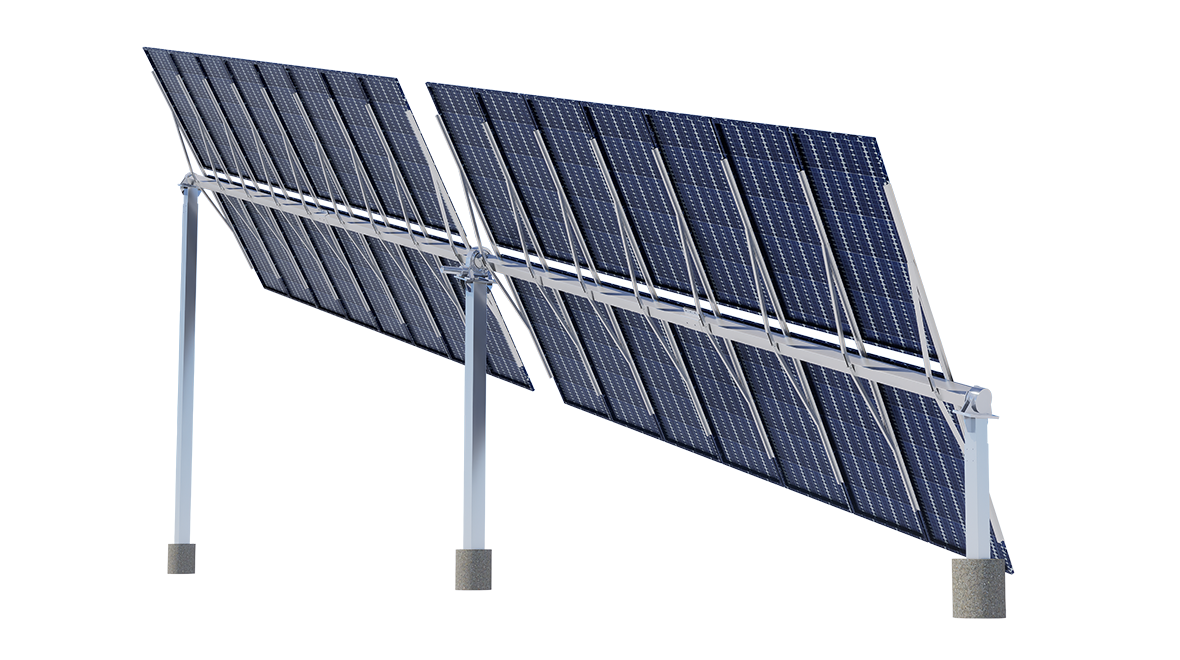

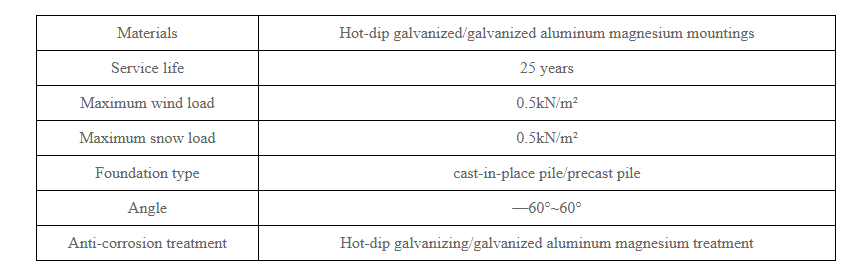

Each PV module is set on an independent tracker structure with strong terrain adaptability, automatically adjusts the orientation and angle of thePV modulethrough the slewing reducer, and realizes intelligent tracking of the sun's trajectory through the algorithm to maximize the power generation.
Wuhan CNTSUN New Energy Co., Ltd. is one of the world's leading manufacturers and solution providers of solar mounting system.Founded in 2017 and headquartered in Wuhan, China, CNTSUN is a national high-tech enterprise integrating technology R&D, scientific design,intelligent manufacturing and global sales. The production plant is located in the new energy smart manufacturing base in Yangluo Economic Development Zone, Xinzhou, Wuhan City, with a processing base of 60,000m' and an annual production capacity of more than 10GW, which is the largest new energy smart manufacturing base in Central China. The company boasts a top team with more than 10 years of experience in the industry, and its products have passed the stringent tests such as CE, TUV, UL, SGS, ISO, etc., and have independent intellectual property rights.
