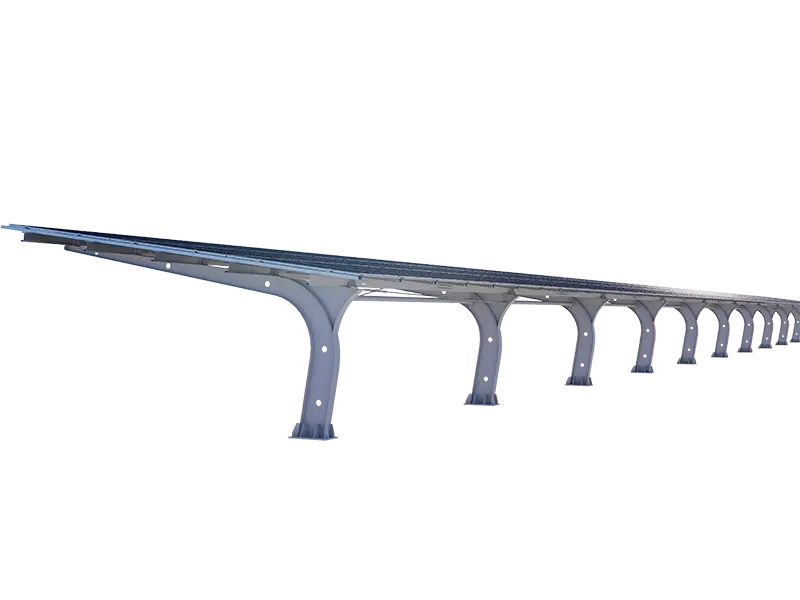

A combination of wind and rain protection and water proofing with elegant modeling design.
Waterproof Carport saves energy cost by charging vehicles and generating clean energy.
Built from hot-dip galvanized steel or Zn-AL-MG alloy, the structure stands tough against corrosion, wind, and snow loads (up to 1.0kN/m² for each). With a designed service life of 25 years.
Thanks to a highly pre-assembled design, the durable aluminum waterproof carport mounting system goes together fast without complex tools or heavy on-site fabrication.
Framed PV modules, frameless PV modules
Industrial parking lot, commercial parking lot, personal parking lot, other public areas
Poles, inclined beams, purlins, slant support, hoops, etc.
High-speed toll station project
Materials: Hot Dipped Galvanized/ Hot Dip Zn-AL-MG Alloy Coated Steel
Service life: 25 years
Maximum wind load: 1.0kN/m²
Maximum snow load: 1.0kN/m²
Foundation type: Pre-embedded steel pole
Angle: 10°
Coating: Hot-dip galvanizing/Hot Dip Zn-AL-MG Alloy
Every commercial parking lot and residential driveway comes with unique spatial constraints and aesthetic requirements. To accommodate these diverse project needs, our durable aluminum waterproof carport mounting system features a modular framework that supports highly flexible engineering layouts. Whether your site layout demands a single-row cantilever design for easy vehicle maneuvering, or a double-row span to maximize parking capacity, this customizable durable aluminum waterproof carport mounting system can be tailored to fit your exact tilt angle and clearance height specifications.
This durable aluminum waterproof carport mounting system is optimized for rapid on-site assembly and adapts seamlessly to multiple construction scenarios:
1.High Foundation Adaptability: Fully compatible with both concrete foundations (pre-cast or poured-on-site) and heavy-duty ground screw anchors, allowing stable installation on varied soil types or existing asphalt pavements.
2.Pre-Assembled Main Framework: Key structural matrices are pre-assembled at the factory, which drastically reduces labor hours, minimizes on-site alignment errors, and lowers overall installation costs.
3.Universal Module Compatibility: The adjustable rail clamps easily accommodate both framed and frameless solar panels, including high-efficiency bifacial modules, allowing project developers to maximize energy yield without compromising the waterproof integrity of the carport canopy.
Steel carports eventually show red rust where coatings get scratched. Not this system. Every load‑bearing component receives a thick anodized layer. You skip repainting, recoating, and replacing corroded parts. After commissioning, crews rarely need to touch the structure again.
EPDM gaskets seal tightly between panels, guiding rainwater into hidden gutters. No puddles, no drips, no surprises when you plug in an EV charger below. The waterproof design also shields bifacial module backs from constant moisture, helping your solar array maintain steady energy yields year after year.
Standing water drains fast, so the durable aluminum waterproof carport mounting system experiences far less freeze‑thaw stress in cold climates. That means no cracked seals, no ice‑damaged joints, and no unexpected failures after a harsh winter.
The aluminum alloy inside this system naturally aligns with the long service life of modern PV modules. You avoid expensive mid‑life structural swaps. It’s a one‑time investment that ages gracefully alongside your energy production.
A clean, matte‑silver finish resists UV and weather exposure. Even after decades, the durable aluminum waterproof carport mounting system looks as professional as the day it was installed—adding property value, not eyesores.
