Designed with great flexibility and customized angle, the adjustable tilt solar racking enables the panels to be positioned for maximum solar exposure, enhancing energy yield and efficiency throughout the day.

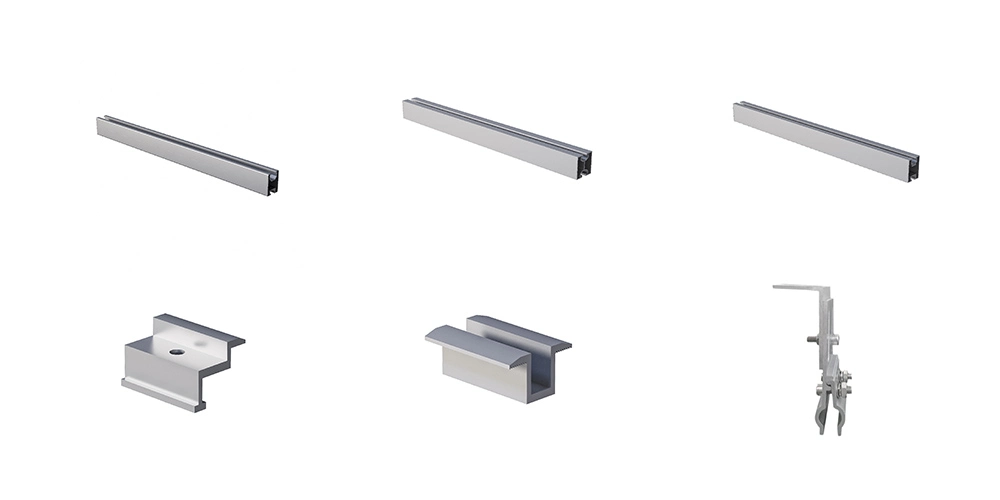

With aluminum FIX-Z sheet connectors, anodized coating, and rails, the tilting solar panel roof mount system ensures fast, reliable, and durable installation by clamping PV panels without damaging the original structure.
Our solar roof tilt mounting system utilizes a high-precision CNC-machined worm gear drive system, coupled with laser positioning and calibration technology. This ensures a locking error of ≤0.05° per degree of tilt adjustment, eliminating the backlash and jitter of traditional ratchet mechanisms.
Our VMI model allows customers to access inventory at any time, while our in-house logistics system enables extremely fast delivery of tilt up solar racking.
Our solar panel adjustable tilt mount can be adapted to framed PV modules (module frame thickness up to 40 mm), and can also be adapted to frameless modules using frameless module clamps with silicone clamping.

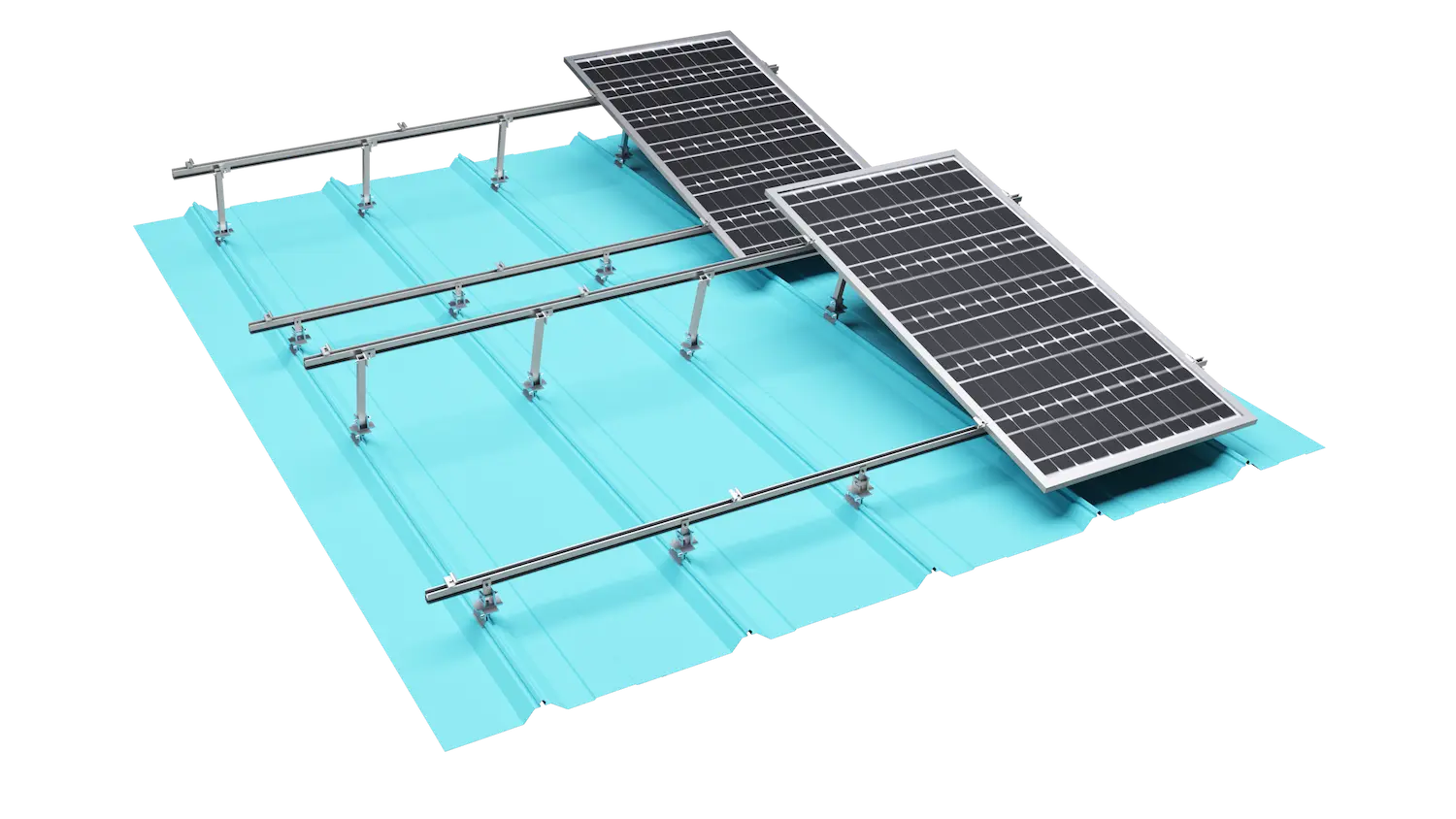

The solar roof tilt mounting system is engineered for versatile deployment, featuring low-profile designs (as thin as 5cm) for residential rooftops, reinforced wind-resistant structures for commercial flat roofs, and corrosion-resistant aluminum alloy frameworks for harsh industrial environments.
The adjustable tilt solar racking system utilizes high-strength aluminum FIX-Z connectors paired with T-slot rails, enabling tool-free 5°-45° tilt adjustments while maintaining 2,500Pa wind load resistance – ideal for rapid seasonal angle optimization.
Tongnan Project in Chongqing
Materials: Aluminum Mountings
Service life of the Adjustable Tilt RV Solar Panel Mounts: 25 years
Maximum wind load: 0.8kN/m²
Maximum snow load: 0.8kN/m²
Foundation type: Roof Hooks + rail
Angle: customized
Coating: Surface anodized
